Mapping Codebases to Knowledge Graphs for AI Coding Agents
Graphify turns complex repositories into structured, queryable knowledge graphs to give AI assistants instant architectural context.
As AI coding assistants and autonomous agents become staples of the modern development workflow, they face a persistent bottleneck: context ingestion. Feeding raw file dumps, massive directory trees, or endless lines of source code into an LLM's context window is not only expensive, but it also frequently dilutes the model's understanding of complex, cross-file relationships.

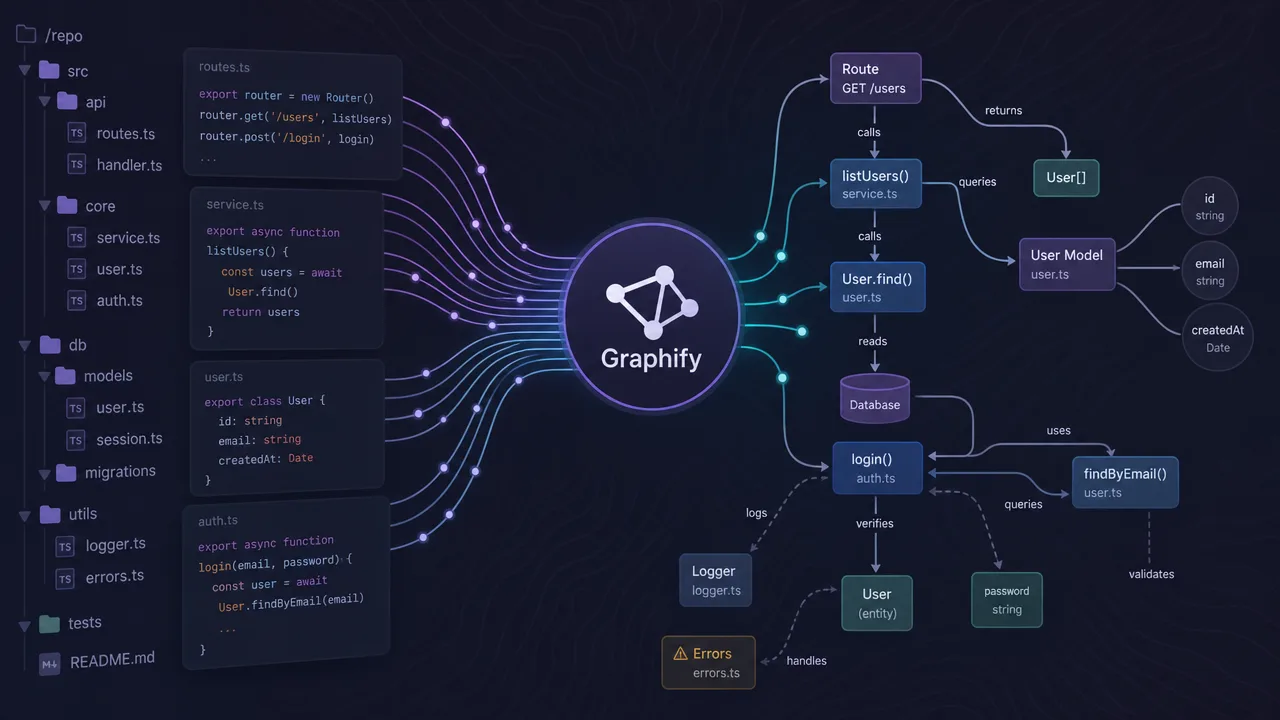

To bridge this gap, a trending open-source tool called Graphify offers a structured alternative. Instead of forcing an AI assistant to grep through raw files, Graphify parses and maps an entire project—including application code, database schemas, infrastructure configurations, and documentation—into a unified, queryable knowledge graph.
Beyond Raw Text: Building the Graph
Graphify operates on the premise that a codebase is more than a collection of text files; it is a web of interconnected dependencies, call flows, and data schemas. The tool scans a target directory and extracts relationships across a wide array of assets, including:
- Application Code & Scripts: Standard source files, R scripts, and shell scripts.
- Databases & Infrastructure: SQL schemas and infrastructure-as-code configurations, linking the database layer directly to the application logic.
- Documentation & Media: Markdown files, academic papers, PDFs, images, and even videos.
Once the analysis is complete, Graphify generates a dedicated graphify-out/ directory containing three key deliverables:
graph.html: An interactive, visual representation of the codebase. Developers can open this file in any browser to click nodes, apply filters, and search through dependencies visually.GRAPH_REPORT.md: A markdown summary highlighting key concepts, identifying surprising architectural connections, and suggesting relevant questions to ask the AI.graph.json: The complete structured graph. This file serves as the machine-readable source of truth that AI agents can query instantly without needing to re-parse the underlying codebase.
For teams requiring deep architectural insights, the tool also includes a dedicated export command (graphify export callflow-html) that generates visual Mermaid call-flow diagrams directly from the codebase.
Seamless Agent Integration
Graphify is designed to function as an extensible "skill" for a broad ecosystem of AI coding assistants. Once registered, developers can trigger the mapping process directly within their assistant's chat interface by typing /graphify . (or graphify . in PowerShell environments).
The tool supports an extensive list of popular platforms and command-line interfaces, including Claude Code, Codex, Cursor, Aider, Gemini CLI, GitHub Copilot CLI, VS Code Copilot Chat, Devin CLI, and Trae.
To prevent global configuration drift, Graphify supports project-scoped installations via the --project flag:
graphify install --project
This command writes the skill definition and its associated references directly into the local repository (e.g., under .claude/skills/graphify/SKILL.md or .agents/skills/graphify/SKILL.md), making it easy to commit the configuration to version control so the entire team can leverage the same structured context.
Installation and Setup
Getting started with Graphify requires Python 3.10 or higher. The project maintainers strongly recommend using uv for package management to ensure clean environment isolation and avoid common runtime path issues.
Because of naming conflicts on PyPI, the official package is published under the name graphifyy (with a double 'y'), though the CLI command remains graphify:
# Recommended installation via uv
uv tool install graphifyy
# Alternative installation via pipx
pipx install graphifyy
After installing the package, developers register the skill globally or locally using the install command:
graphify install
To ensure the knowledge graph remains accurate as the codebase evolves, Graphify provides git integration. Running graphify hook install configures a post-commit hook that automatically updates the graph. This hook embeds the active Python interpreter path directly into the script, ensuring it executes reliably across GUI git clients and continuous integration runners where standard user paths might not be exposed.
Sources & further reading
- safishamsi/graphify — github.com
